Jwell DYPS-P Series Sheet Crusher
Jwell DYPS-P Series Sheet Crusher
Jwell DYPS-P Series Sheet Crusher
Jwell DYPS-P Series Sheet Crusher
Jwell DYPS-P Series Sheet Crusher

Jwell DYPS-P Series Sheet Crusher


Berteplak:Sina
Merknamme:jwol
Certification:ISO CE UL TUV
Competitive foardiel:
Hege kwaliteit, hege kapasiteit, hege stabiliteit, wrâldwide after-sales tsjinst, mear as 30 jier ûntwikkeljen ûnderfining
Foegje ta oan kuorke
Oanfraach

Dyps-p series crusher is used to solve the problem of recycling and crushing of wide PP/ABS/PMMA, sheets, plates and foamed coils with a thickness of 0.2~3mm.

Beskriuwing

Compared with the general crusher, this crusher adds a set of traction device,added two sets of pressure rollers, air pressure opening and closing, linear speed up to 30m/min,thereby improving the production efficiency, the main shaft is made of high-quality steel, and has been verified by dynamic and static balance. The "V"-shaped cutting technology and the box water cooling system avoid the phenomenon of overheating and sticking of the material in the crusher cavity.Tool rest optimization design, claw knife can be dispersed by strength, so that the shear knife of each blade increases, suitable for crushing thick material, hard material block material head, effectively improve the cutting force of the tool,reduce the problem of tool wear. According to the customer's requirements, it provides a complete set of aggregate suction unit and dust separation device, which is more convenient to use.


Spesifikaasjes
MODELFEED MOUT SIZE
(MM)
HOOFD MOTOR KRACHT
(KW)
HAUL OFF MAG
(KW)
ROTOR EFFEKTJE
WIDTH
(MM)
OUT PUT (KG/H)
 DYPS-P 1000960*30037-4541000400
DYPS-P12001160*35045-555.51200500

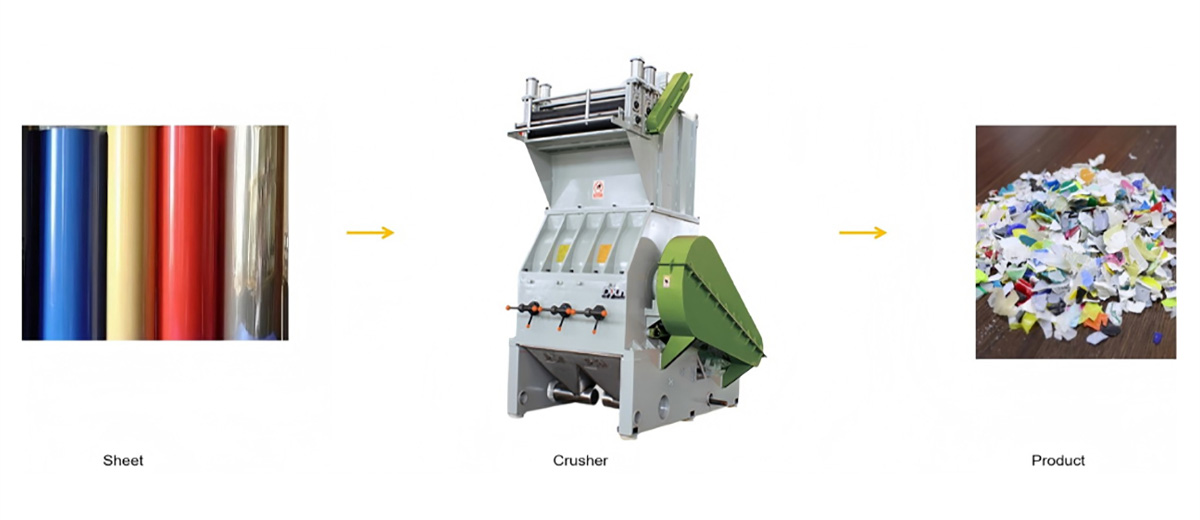

Prosesstappen

foarútgong(1)-1

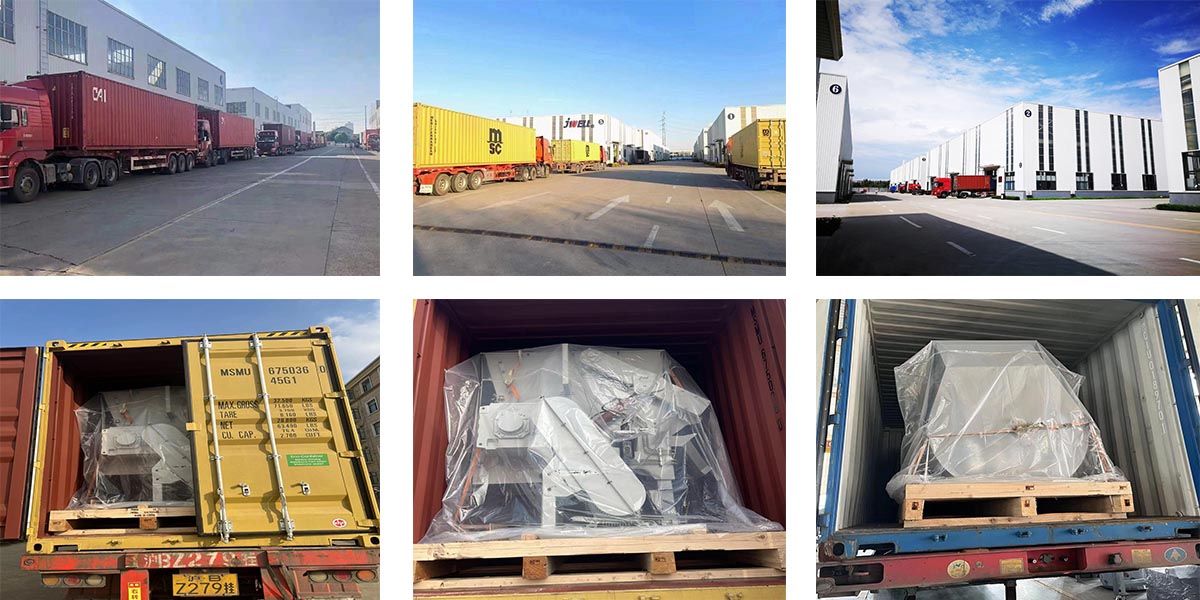

shipment

packing
