DYSSJ single shaft shredder fan JWELL
Berteplak: | Sina |
Merknamme: | jwol |
Certification: | ISO CE UL TUV |
Competitive foardiel: | Hege kwaliteit, hege kapasiteit, hege stabiliteit, wrâldwide after-sales tsjinst, mear as 30 jier ûntwikkeljen ûnderfining |
Oanfraach
All DYSSJ models have a standard pusher plate, which is more convenient for crushing large solid bodies or pallets, wood, etc.
Beskriuwing

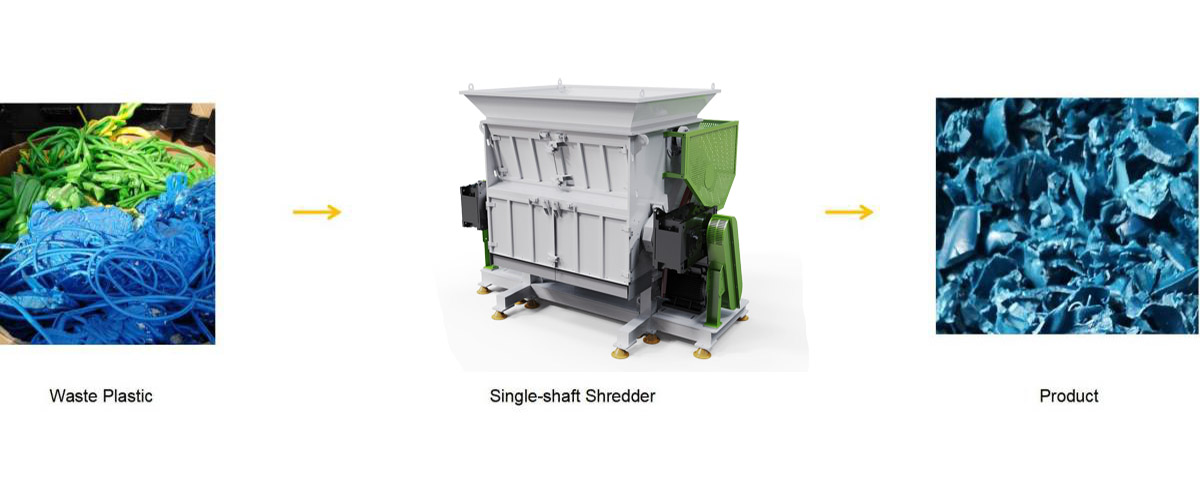

DYSSJ series shredder has the advantage of its strong push rod and the clever combination of heavy directional bearings to make the operation safe and reliable. Fully automatic crushing process, with beautiful design visual material window, can arbitrarily observe crushing effect and crushing dynamic process. At the same time DYSSJ series models can be designed according to the needs of different feeding hopper, suitable for batch feeding hopper can optimize production, because the pusher can continue to be crushed material pushed to the rotor, improve crushing efficiency, and will not cause too much feeding problems.
Spesifikaasjes
MODEL | CRUSH KAMER MAX. GRUTTE (MM) | DRIVE POWER (KW) | ROTOR BLADE KWANTITEIT (PIS) | FIXED BLADE KWANTITEIT (PIS) | ROTOR BLADE SWING DIAMETER (MM) | ROTOR SPEED (RPM) |
DYSSJ-850 | 700*730 | 37 | 60 | 3*2 | F435 | 37 |
DYSSJ-1500 | 800*1290 | 75 | 102 | 5*2 | F505 | 37 |
