JWELL Starch Filled Bio-Plastic Compounding Line
JWELL Starch Filled Bio-Plastic Compounding Line
JWELL Starch Filled Bio-Plastic Compounding Line
JWELL Starch Filled Bio-Plastic Compounding Line

JWELL Starch Filled Bio-Plastic Compounding Line


Berteplak:Sina
Merknamme:jwol
Certification:ISO CE UL TUV
Competitive foardiel:Hege kwaliteit, hege kapasiteit, hege stabiliteit, wrâldwiid nei-ferkeap tsjinst, mear as 40 jier ûntwikkeljen ûnderfining


Foegje ta oan kuorke
Oanfraach

Disposable lunch boxes, knives and forks, straws, cups, shopping bags, courier bags, mulching film and other degradable products.

Beskriuwing

Starch filled bio-plastic compounding line is composed of four parts. They are dosing system、compounding system、underwater cutting system、downstream auxiliary equipment.

Dosing system contains vacuum loader for pellet、refill silo for pellet、single screw loss in weight feeder、vacuum loader for powder、refill silo for powder、twin screw loss in weight feeder、liquid loss in weight feeder.

According to the independent and accurate dosing system, raw material of bio-plastic, starch and plasticizer are added to the twin screw extruder, which has a high degree of automation and strong elasticity of formula adjustment.

Compounding system has control cabinet、gearbox、safety clutch、main extruder and main motor. Efficient heating and precise control to ensure stable,reliable and long term production.

Underwater cutting system includes water circulation system、cutter、water tank、dewatering unit. The closed system is enviromental with no emission of smoke and dust.

Competitive Advantage
modelL/D ferhâldingFaasjeMotor powerKoppel nivoKapasiteit foar referinsjeTypyske formule
CJWH-5240-56300 rpm45KW9 N.m/cm3150kg / hrBio-plestik
+ 55% setmoal
+ 15% glycerine
CJWH-6540-56300 rpm75KW9 N.m/cm3240kg / hr
CJWH-7540-56300 rpm132KW9 N.m/cm3440kg / hr
CJWH-9540-56300 rpm250KW9 N.m/cm3820kg / hr
CJWS-5240-56300 rpm55KW11 N.m/cm3190kg / hr
CJWS-6540-56266 rpm90KW11 N.m/cm3310kg / hr
CJWS-7540-56300 rpm160KW11 N.m/cm3550kg / hr
CJWS-9540-56300 rpm315KW11 N.m/cm31060kg / hr
CJWS-75 Plus44-56330 rpm200KW13.5 N.m/cm3700kg / hr

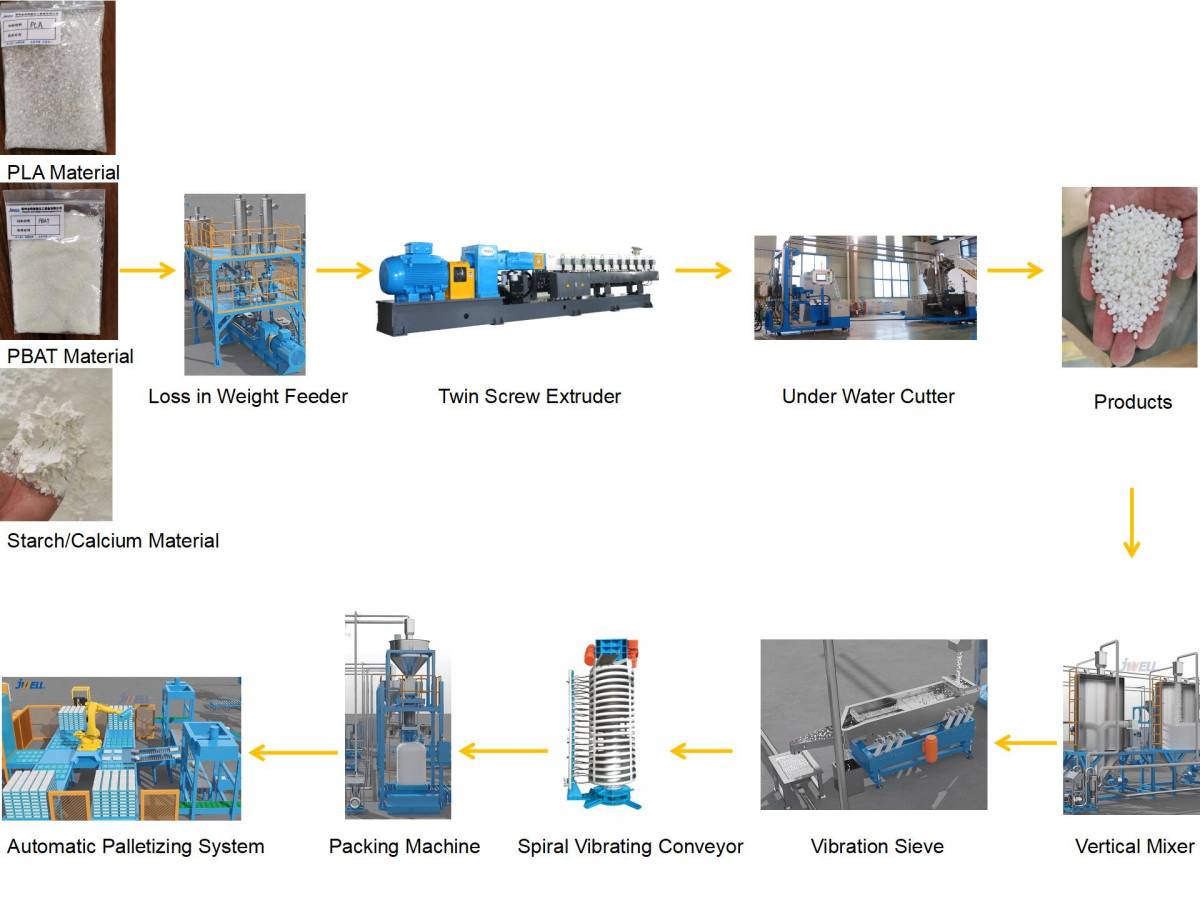

Prosesstappen

fuortgong

shipment

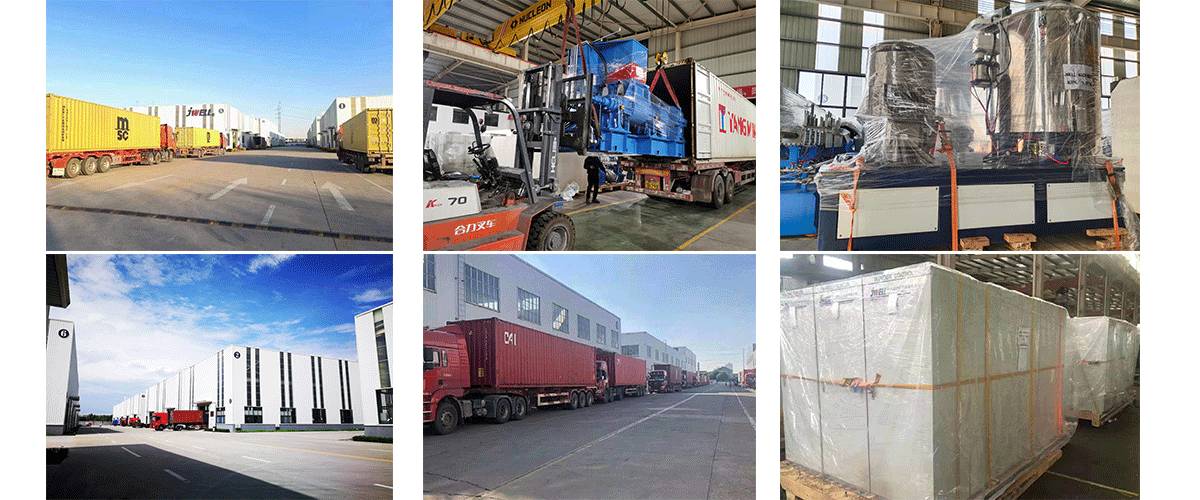

packing
